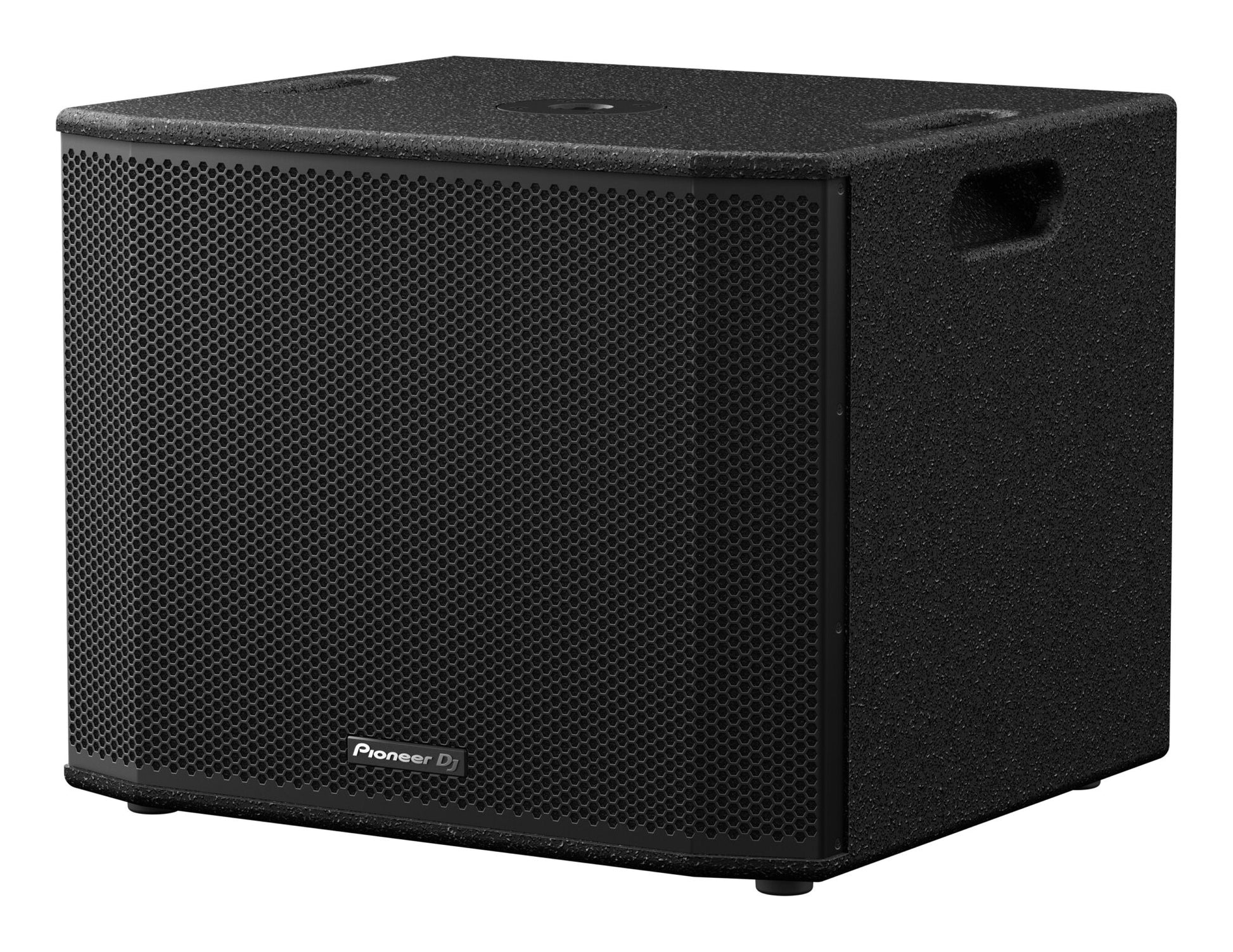

Pioneer DJ XPRS1152ST 15" Active Subwoofer Powersoft Class-D Amp

The XPRS1152ST employs a 15” ferrite woofer with a 3” voice coil with long excursion to produce low frequencies with excellent accuracy. The XPRS1152ST provides a frequency response of 45 Hz – 120 Hz and a maximum SPL of 129 dB. The subwoofer packs in the performance of a permanent install unit with the compact portability required by today’s mobile artists, performers, and venues.

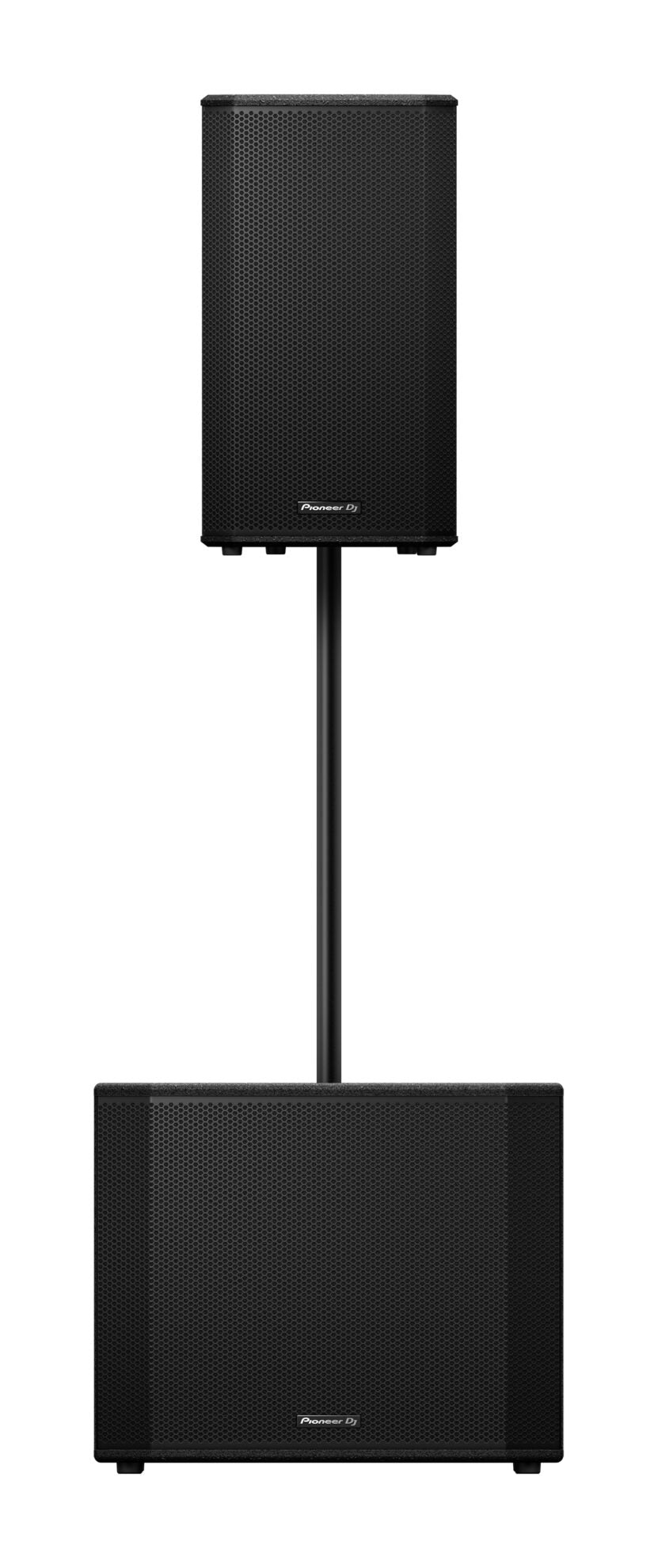

• M20 Threaded Pole-Mount
• 15" Active Vented Subwoofer
• 3" Voice Coil with Long Excursion
• 4000W Peak
• Powerful Class D Amplification / High‑Quality, Robust Build
• Three DSP Modes / Accurate Audio

Main Features

• Amplifier Output:
  • Class D
  • 4000W peak

Specifications

• Power supply: 110 V to 240 V (50 Hz/60 Hz)
• Power consumption: 800 W
• Width: 580 mm
• Height: 450 mm
• Depth: 503 mm
• Weight: 26.6 kg

System characteristic

• DSP modes
  • EQ Mode Select (3 DSP Preset Modes(Switch))
  • LPF
  • POLARITY
• DSP presets modes: BOOST
• EXTENDED LF: NORMAL
• Maximum Sound Pressure: 129 dB

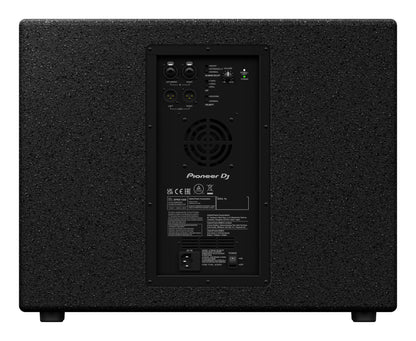

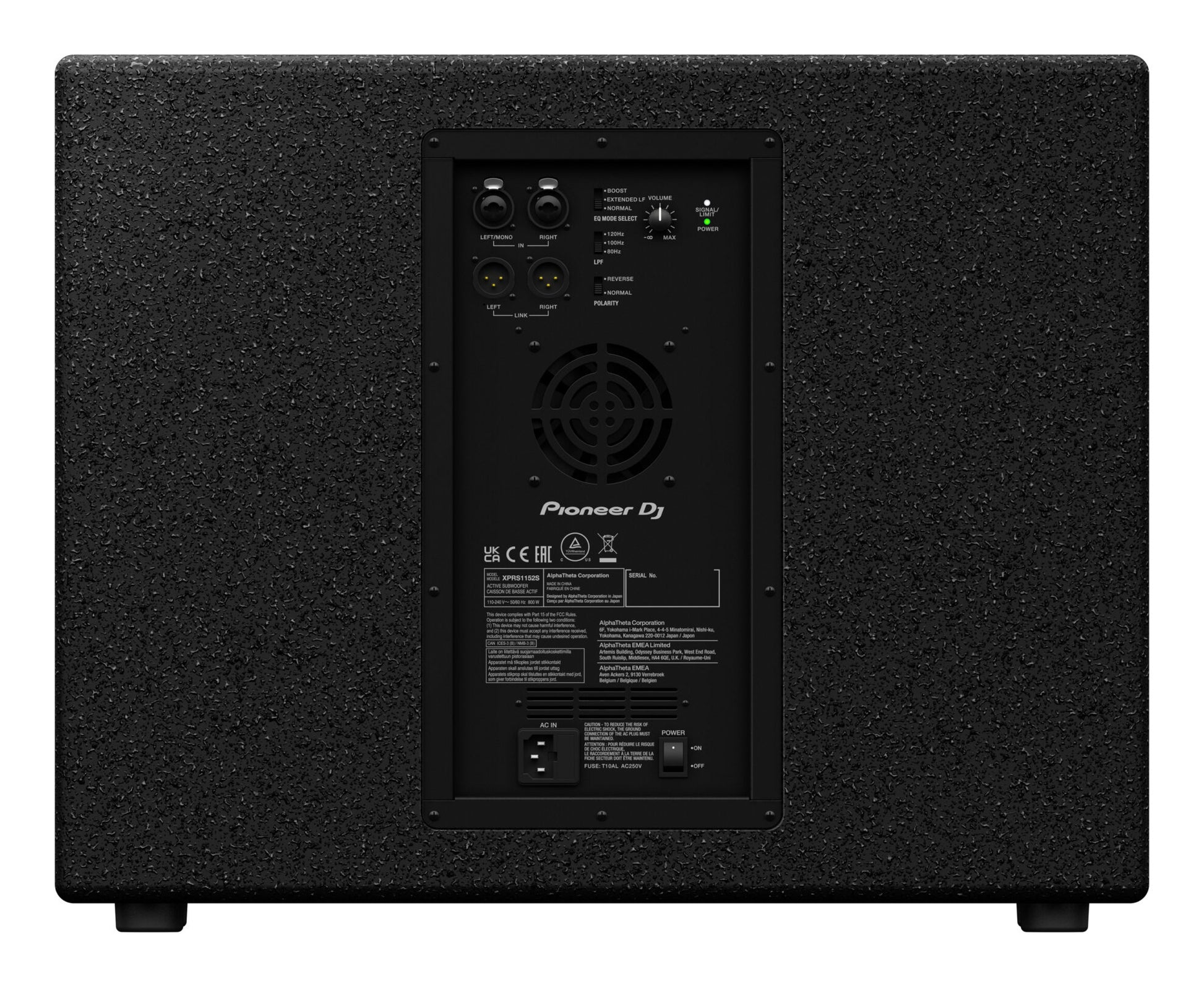

Terminals

• Inputs
  • Left Mono (Combo)
  • Right (Combo)
• Outputs
  • Left Mono (XLR)
  • Right (XLR)

Speaker

• Driver: 15 inch ferrite LF cone driver
• Finish: Black paint, Rubber feet

Protection

• Amplifier Protection:
  • Thermal limiting
  • Digital compressor
• Driver Protection: Short circuit protection
• Power unit Protection:
  • Primary AC mains overcurrent protection
  • Primary AC mains overvoltage protection
