Alpha Theta Euphonia Professional 4 Channel Rotary Mixer B Stock

Alpha Theta Euphonia Professional 4 Channel Rotary Mixer - B Stock

This mixer is an ex-display model. It has seen a few hours usage and comes boxed as new with a 1 year warranty. The Alpha Theta Euphonia produces a euphoric sound with the clarity of digital and the richness of analog that’s never been heard from a DJ mixer before. We have the Alpha Theta Euphonia on demo in store along with a pair of CDJ 3000, turntables and a huge Funktion One EVO X sound system! To deliver a clearer sound quality that accurately reproduces the expression of the music, the euphonia uses high-quality 32-bit A/D and D/A converters as well as 96kHz/64bit floating point mixing processing operations in the DSP, utilizing the digital signal processing technology AlphaTheta has developed over many years. All sound coming out of the euphonia passes through a transformer circuit co-designed by AlphaTheta and Rupert Neve Designs, the legendary makers of outstanding analog audio circuitry and mixing desks revered by artists and sound engineers around the world. This transformer circuit, tuned specifically for the euphonia, adds harmonics to the music and creates a glossy and energetic sound that’s smoother for mixing. Low frequencies such as kicks and bass are more stable and punchy, mid frequencies like vocals and instruments have more presence and gloss, and high frequencies such as hi-hats sound silky and natural. The transformer breaks down the barrier between vintage live and modern electric sounds, making mixing easier and surprisingly natural, as if recordings in different styles were originally one piece of music.

Product Features

• Digital Clarity Meets Analog Warmth
• Rupert Neve Designs Transformer
• Specially Designed Rotary Fader
• Energy Visualizer
• Next-Generation 3Band Master Isolator
• Built-In Send FX

Product Specifications

General

• Power requirements:  AC 110 V – 240 V, 50 Hz/60 Hz
• Power consumption:  43 W
• Power consumption (off):  0.2 W
• Main unit weight:  9.5 kg/20.94 lbs.
• Max. external dimensions:  (W × D × H) 429.2 × 331.0 × 119.9 mm/16.90" × 13.03" × 4.72"
• Tolerable operating temperature:  +5 °C – +35 °C (+41 °F – +95 °F)
• Tolerable operating humidity:  5 % – 85 % (no condensation)

Audio section

• Sampling rate:  96 kHz
• MASTER, BOOTH, SEND (MASTER INSERT) D/A converter:  32bit
• CH input A/D converter:  32bit
• Other A/D and D/A converters:  24bit
• Frequency characteristic
  • LINE:  20 Hz – 40 kHz
• S/N ratio (rated output, A-WEIGHTED)
  • USB, DIGITAL IN:  107 dB
  • PHONO:  88 dB
  • LINE:  105 dB
  • MIC:  79 dB
• Standard input level/Input impedance
  • PHONO:  -52 dBu/47 kΩ
  • LINE:  -12 dBu/47 kΩ
  • MIC:  -57 dBu/ 3.5 kΩ
  • RETURN:  -12 dBu/47 kΩ
• Max. input level
  • PHONO:  -17.8 dBu
  • LINE:  +15 dBu
  • MIC:  +2 dBu
  • RETURN:  +12 dBu
• Standard output level/Load impedance/Output impedance
  • MASTER:  +6 dBu/10 kΩ/360 Ω
  • REC OUT:  -8 dBu/10 kΩ/700 Ω
  • BOOTH:  +6 dBu/10 kΩ/360 Ω
  • SEND (EXTERNAL):  -9 dBu/10 kΩ/700 Ω
  • SEND (MASTER INSERT):  -12 dBu/10 kΩ/700 Ω
  • PHONES:  +8 dBu/32 Ω/1 Ω or lower
• Rated output level/Load impedance
  • MASTER:  +25 dBu/10 kΩ
  • BOOTH:  +25 dBu/10 kΩ
• Crosstalk
  • LINE:  82 dB
• Channel equalizer characteristic
  • HI:  -26 dB – +6 dB (20 kHz)
  • MID:  -26 dB – +6 dB (1 kHz)
  • LOW:  -26 dB – +6 dB (20 Hz)
• Microphone equalizer characteristic
  • HI:  -12 dB – +12 dB (10 kHz)
  • LOW:  -12 dB – +12 dB (100 Hz)
• BOOTH equalizer characteristic
  • HI:   -12 dB – +6 dB (10 kHz)
  • LOW:  -12 dB – +6 dB (100 Hz)
• MASTER ISOLATOR characteristic
  • Slope:  18 dB/oct
  • Cut/Boost:  OFF – X dB (X = 0, +6, +12)
  • Crossover Freq.:  250 Hz/3.5 kHz

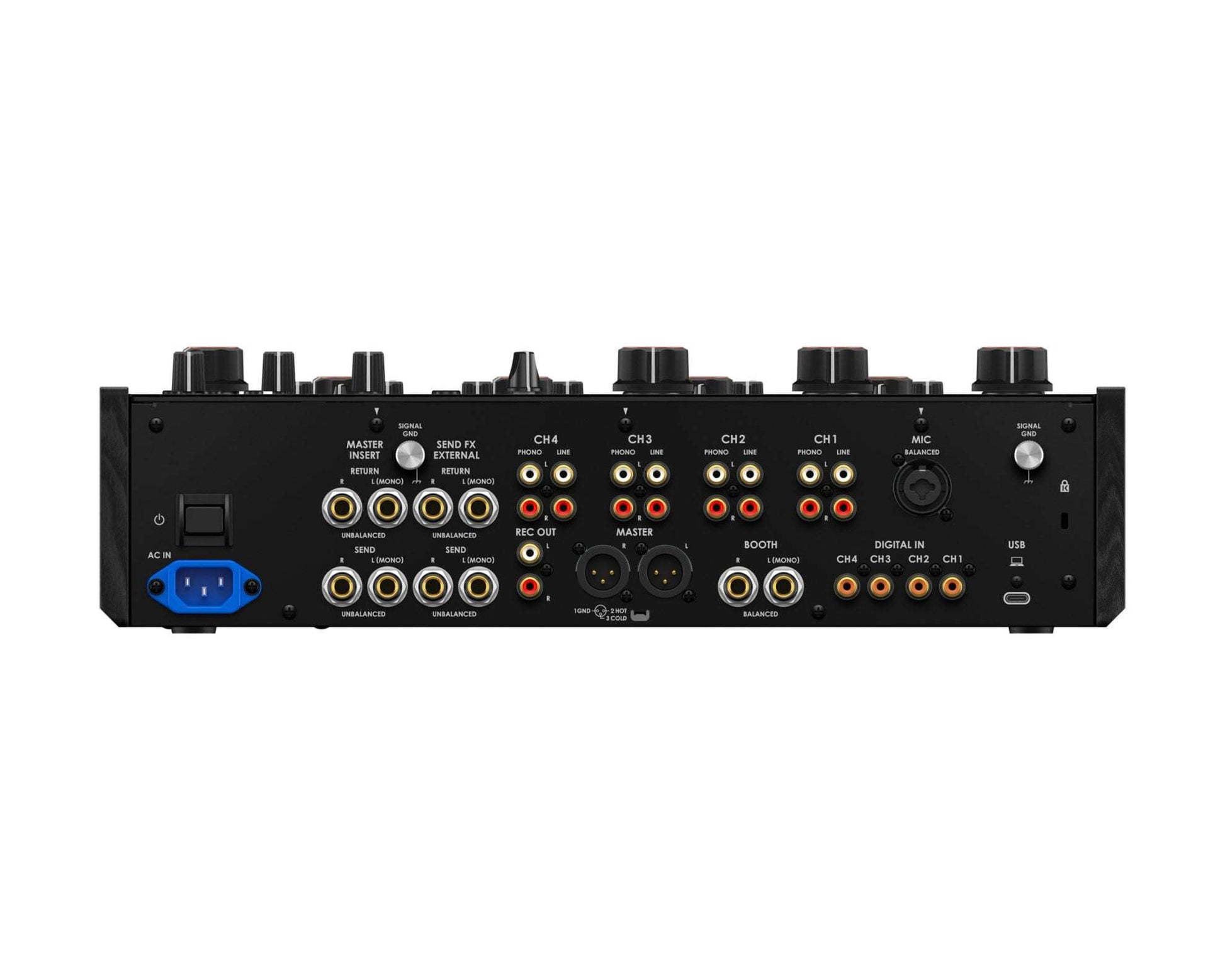

Input/Output terminals

• PHONO input terminal
  • RCA pin jacks:  4 sets
• LINE input terminal
  • RCA pin jacks:  4 sets
• MIC input terminal
  • XLR connector & 1/4” TRS jack:  1 set
• RETURN input terminal
  • 1/4” TS jack:  2 sets
• DIGITAL IN coaxial input terminal
  • RCA pin jacks:  4 sets
• MASTER output terminal
  • XLR connector:  1 set
• BOOTH output terminal
  • 1/4” TRS jack:  1 set
• REC OUT output terminal
  • RCA pin jacks:  1 set
• SEND output terminal
  • 1/4” TS jack:  2 sets
• PHONES output terminal
  • 1/4” stereo jack:  1 set
  • 3.5 mm stereo mini jack:  1 set
• USB terminal
  • USB Type-C:  1 set

1 Year manufactures warranty included as standard. Part exchange accepted -contact us for a quote.

Have any questions? Get in touch and we will be happy to help!
