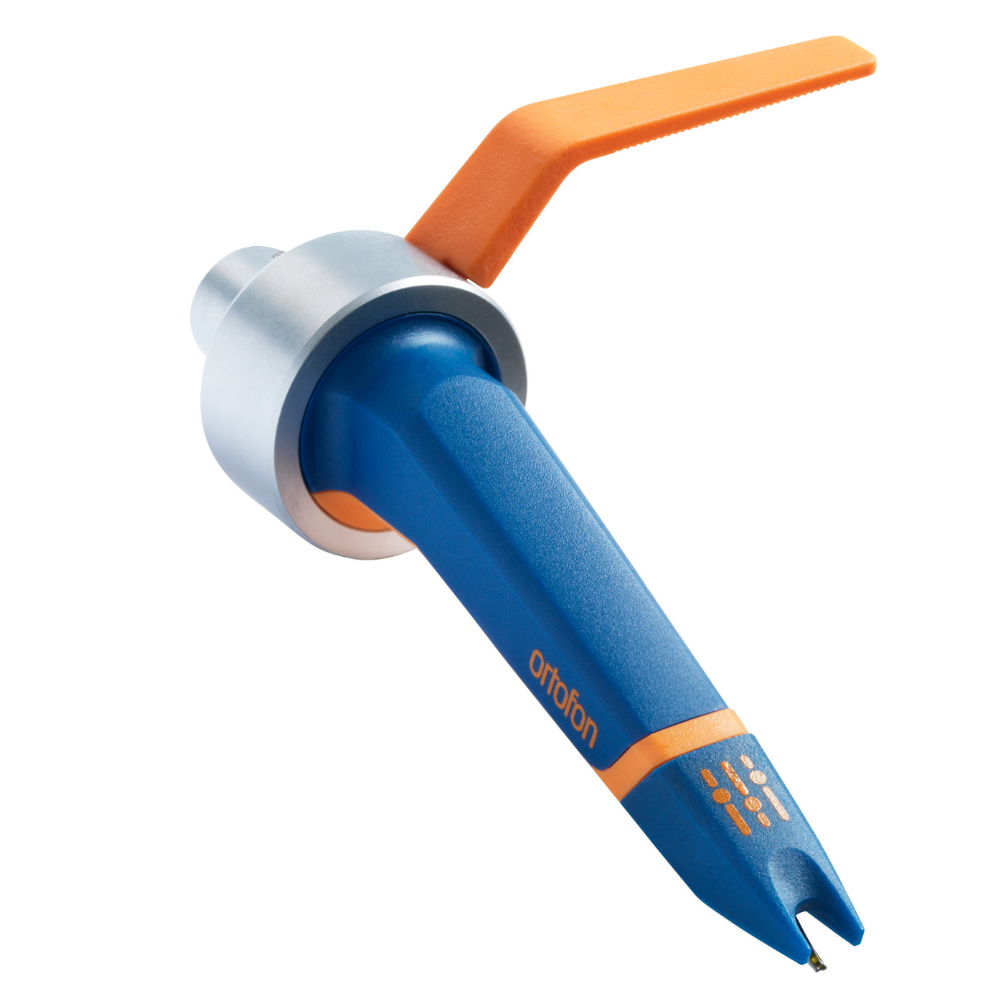

Ortofon Concorde MKII DJ Cartridge

The Concorde DJ is considered the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling. Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear.

• Channel balance at 1 kHz
  1 dB
• Output voltage at 1 kHz, 5cm/sec
  6 mV
• Channel seperation at 1 kHz
  22 dB
• Channel seperation at 15 kHz
  15 dB
• Tracking ability at 315Hz at recommended tracking force
  100 μm
• Compliance, dynamic, lateral
  14 μm/m N
• Stylus type
  Spherical
• Stylus tip radius
  R 18 μm
• Tracking force range
  3 - 5 g
• Tracking force, recommended
  4 g
• Internal impedance, DC resistance
  700 Ohm
• Cartridge weight
  18,5 g
• Reccomended load resistance
  47 kOhm
• Internal inductance
  450 mH
• Recommended load capacitance
  200-600 p
