Ortofon Concorde MKII Twin Mix

Ortofon Concorde MKII Twin Mix

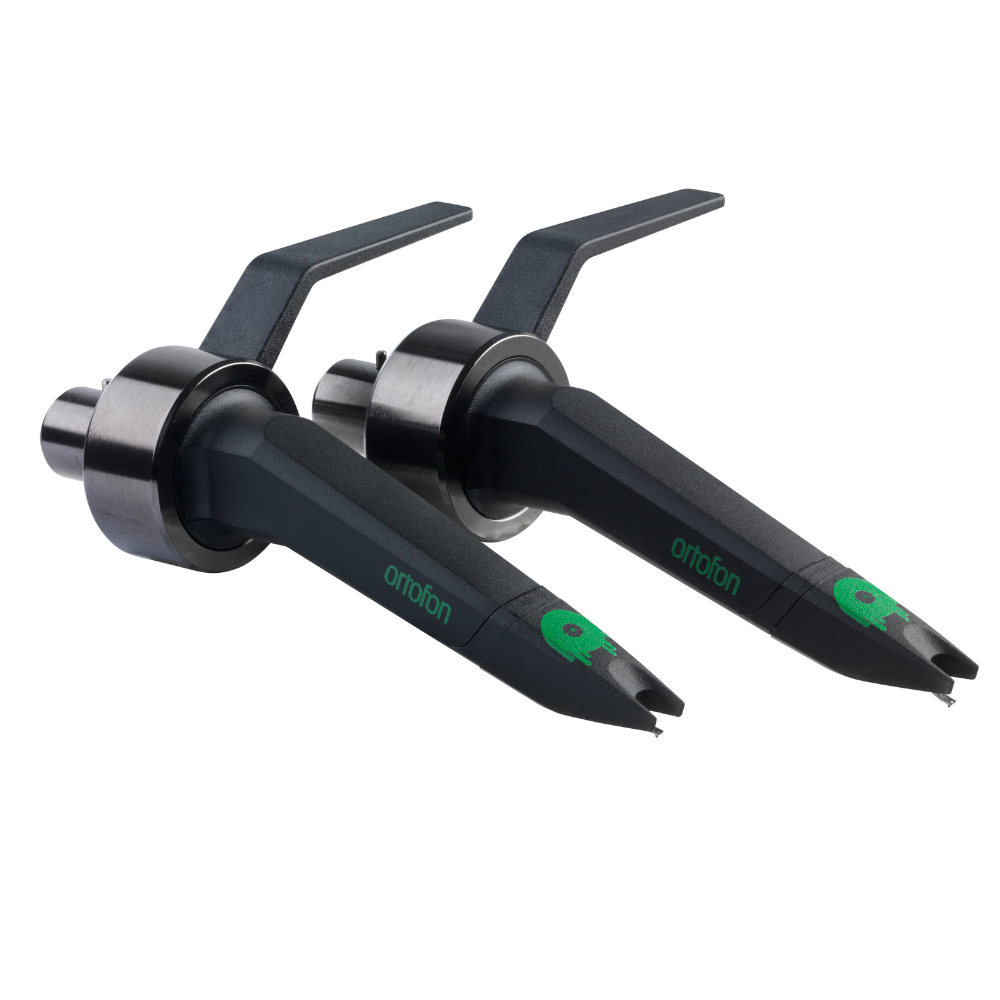

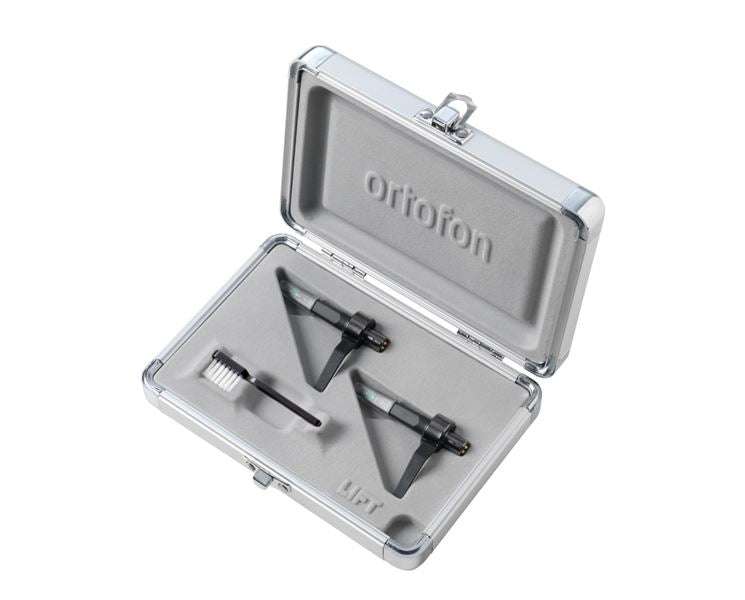

The Concorde TWIN includes two Concorde MkII MIX cartridges with preinstalled styli, all conveniently housed within a Flight case. The MIX is a general-purpose model for scratch and back-cueing, providing great performance and durability. With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.

• Channel balance at 1 kHz
  1,5 dB
• Output voltage at 1 kHz, 5cm/sec
  6 mV
• Channel seperation at 1 kHz
  20 dB
• Channel seperation at 15 kHz
  15 dB
• Tracking ability at 315Hz at recommended tracking force
  100 μm
• Compliance, dynamic, lateral
  14 μm/m N
• Stylus type
  Spherical
• Stylus tip radius
  R 18 μm
• Tracking force range
  2 - 4 g
• Tracking force, recommended
  3 g
• Internal impedance, DC resistance
  700 Ohm
• Cartridge weight
  18,5 g
• Reccomended load resistance
  47 kOhm
• Internal inductance
  450 mH
• Recommended load capacitance
  200-600 pF

Brand new – Full manufacture warranty included.

Part exchange accepted – get in touch for details.
