Pioneer DJ XPRS102 10" 2-Way Active PA Speaker with Powersoft Class-D Amp

The XPRS102 is a full-range speaker featuring class D 2000 W amplification for a powerful and premier audio experience. This speaker series is ideal for anyone who needs a versatile, robust, and high-quality sound system. It’s perfect for mobile DJs, live sound, houses of worship, and rental and fixed installations, among many other users and settings.

Main Features

• Type: 10 inch 2-way active loudspeaker
• Amplifier Output:
  • Class D
  • 2000W peak

Specifications

• Supported voltages: 110 V to 240 V (50 Hz/60 Hz)
• Power consumption: 800 W
• Frequency Range: 50 - 20000 Hz

System characteristic

• DSP modes:
  • Factory Presets (4 types)

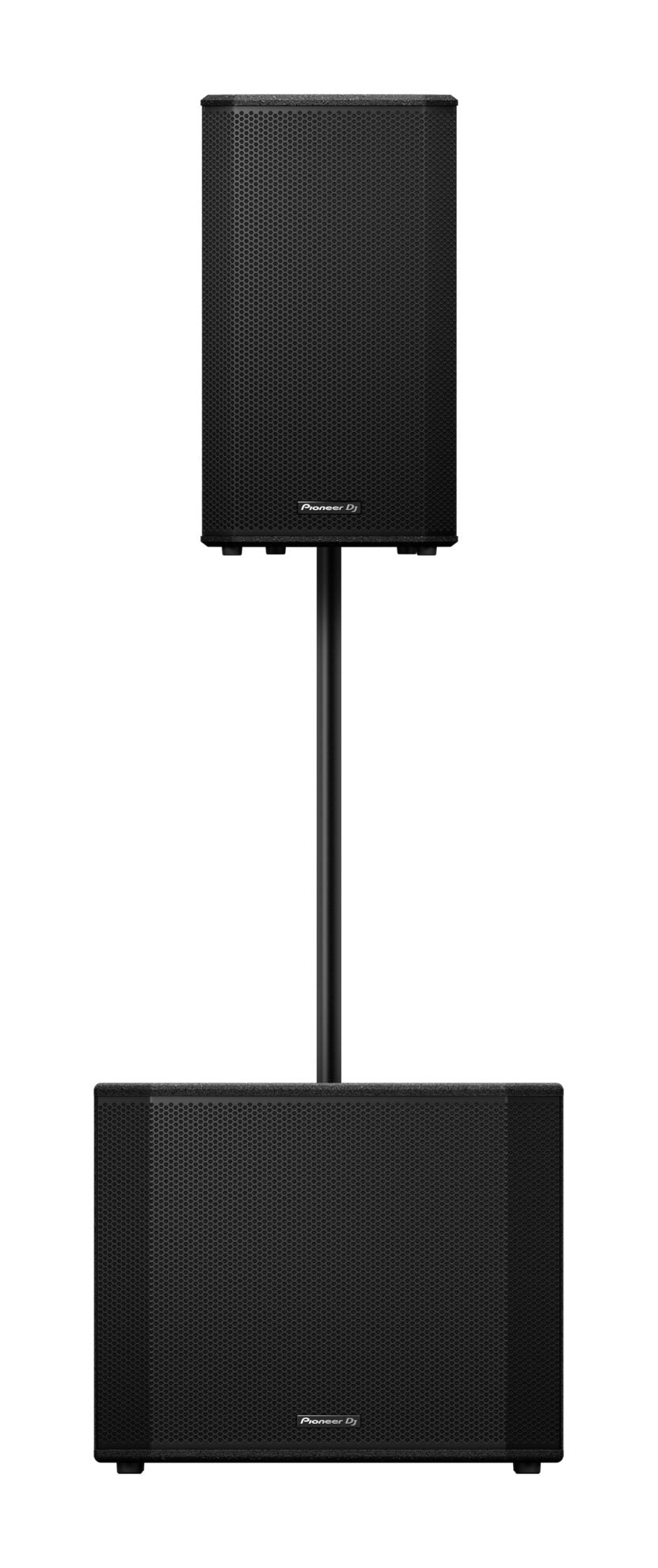

  • Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
  • EQ (4-band equalizer)
  • User Programs (16 presets)
• DSP presets modes:
  • Factory presets:
    • LIVE
    • MUSIC
    • SPEECH
    • MONITOR
• Maximum Sound Pressure: 129 dB
• Cross Over Frequency: 2 kHz

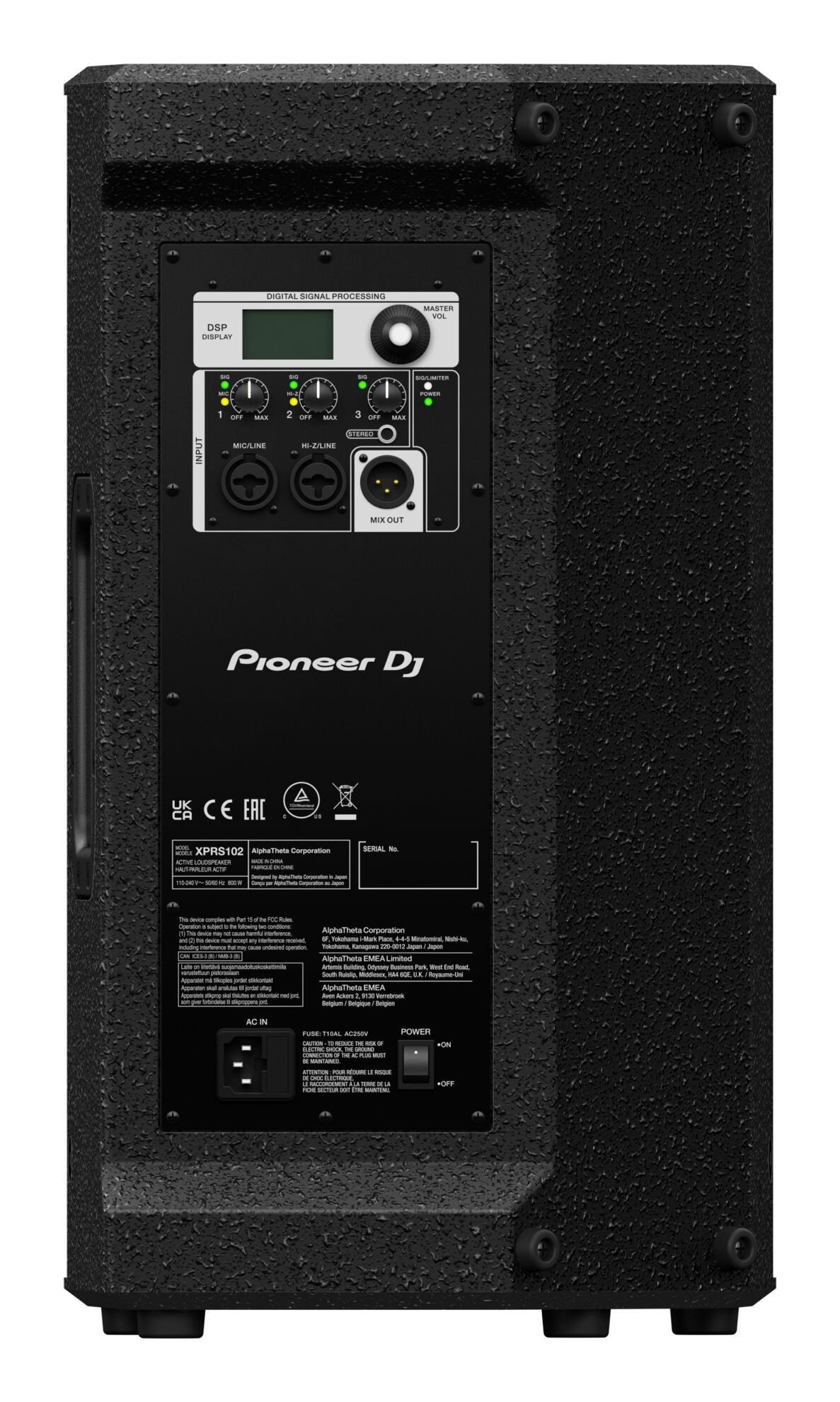

Terminals

• Inputs:
  • MIC / LINE x 1 (Combo)
  • HI-Z / LINE x 1 (Combo)
  • 3.5 mm stereo mini jack x 1 (Unbalanced input)
• Outputs: MIX (XLR)

Speaker

• Driver
  • 10 inch ferrite LF cone driver
  • 1.75 inch compression driver
• Finish: Black paint, Rubber feet
• Handle: 1 metal handle (on left side)
• Pole socket: 35 mm socket
• Rigging point: 10x M10
• Enclosure: Plywood (TSCA)

Protection

• Amplifier Protection:
  • Thermal limiting
  • Digital Limiter
  • Digital compressor
• Driver Protection: Short circuit protection
• Power unit Protection:
  • Primary AC mains overcurrent protection
  • Primary AC mains overvoltage protection

Physical & Dimensions

• Width: 299 mm
• Height: 520 mm
• Depth: 310 mm
• Weight: 15.5 kg

• 10 inch 2-way active loudspeaker
• Max SPL: 129 dB
• 10” Woofer
• 2.5” Voice Coil
• Powerful Class D Amplification / High‑Quality, Robust Build
• Four DSP Presets + 16 User Settings / Full‑Range Speaker Design
