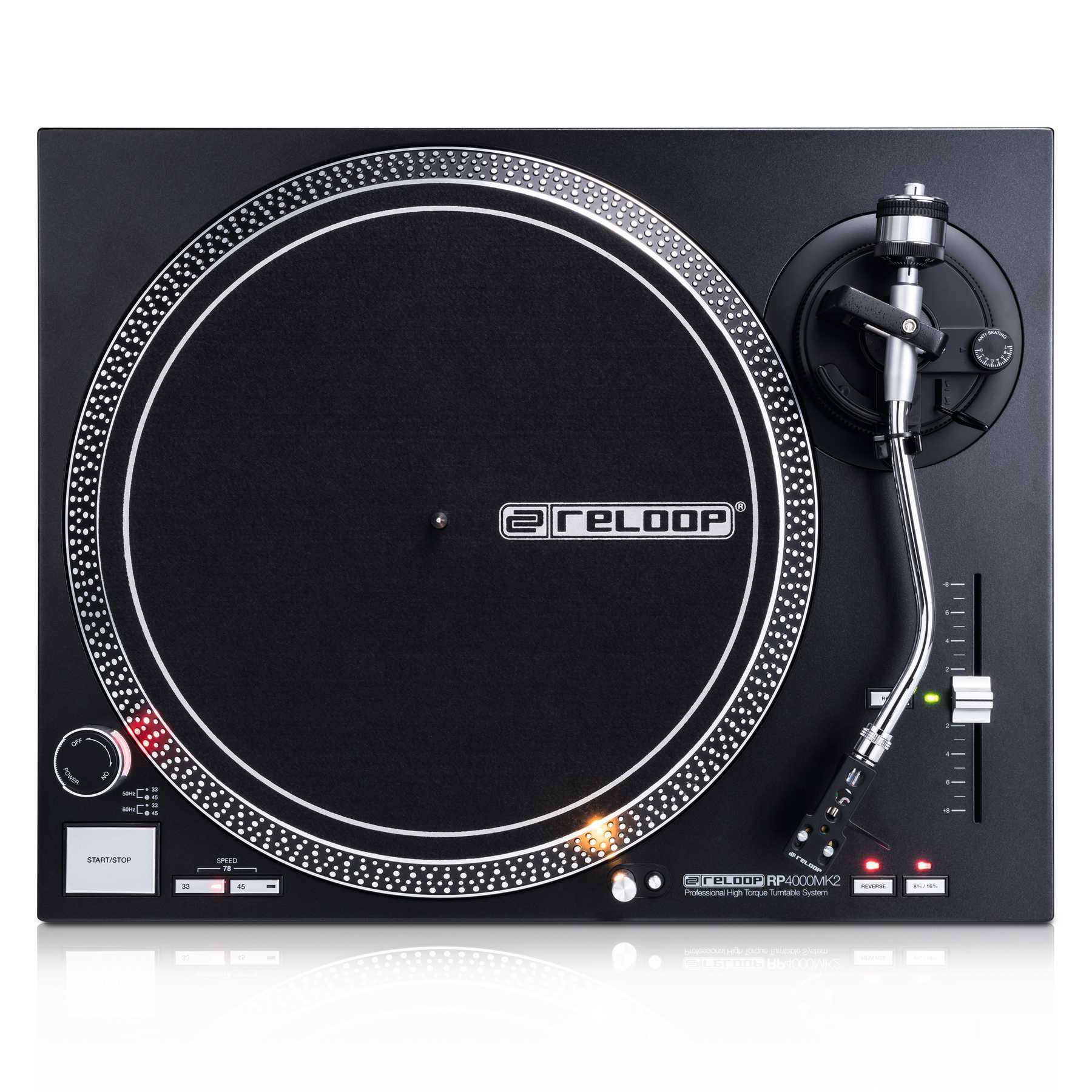

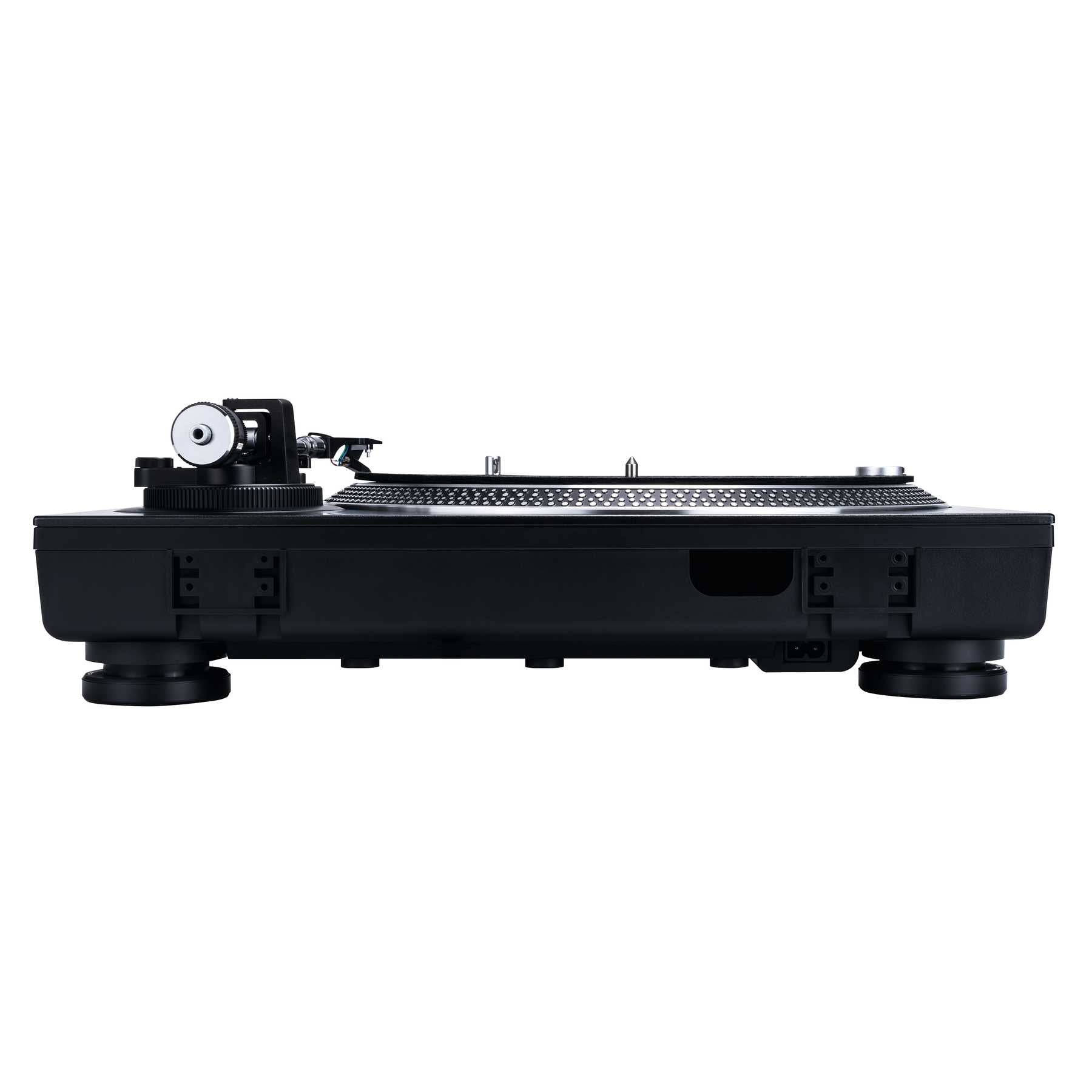

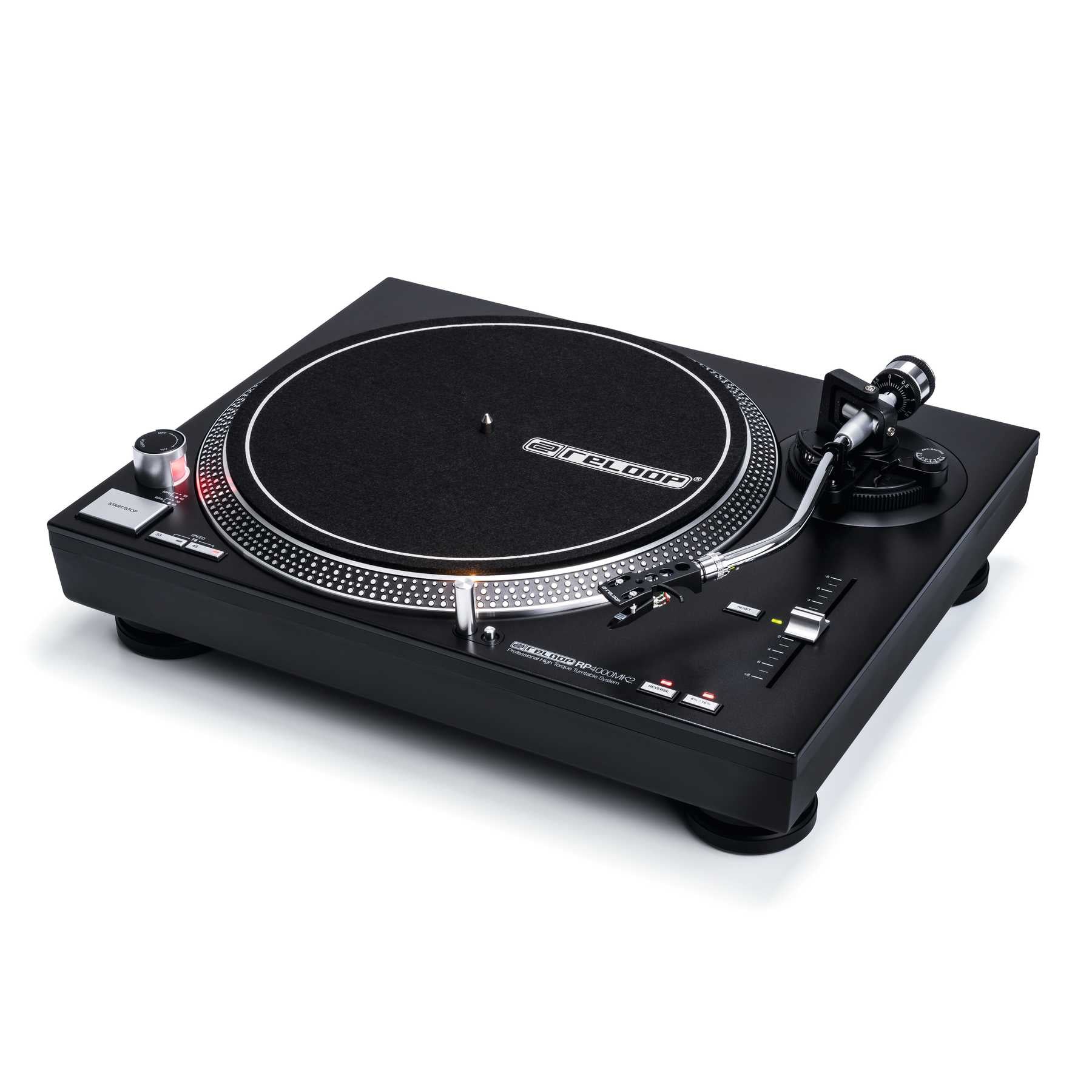

Reloop RP-4000 MK2 Direct Drive Turntable

Reloop RP-4000 MK2 Direct Drive Turntable

PRECISE MOTOR CONTROL WITH 3 SPEEDS

The precision-engineered die-cast platter is accelerated by a powerful motor with a high-torque direct drive of more than 1.8 kg/cm. The precise motor control with 3 speeds (33 1/3, 45 & 78 rpm) allows for the RP-4000 MK2 to play back any record. The pitch section with a selectable range of +/-8% and +/-16%, respectively, is suitable for the finest pitch adjustments.

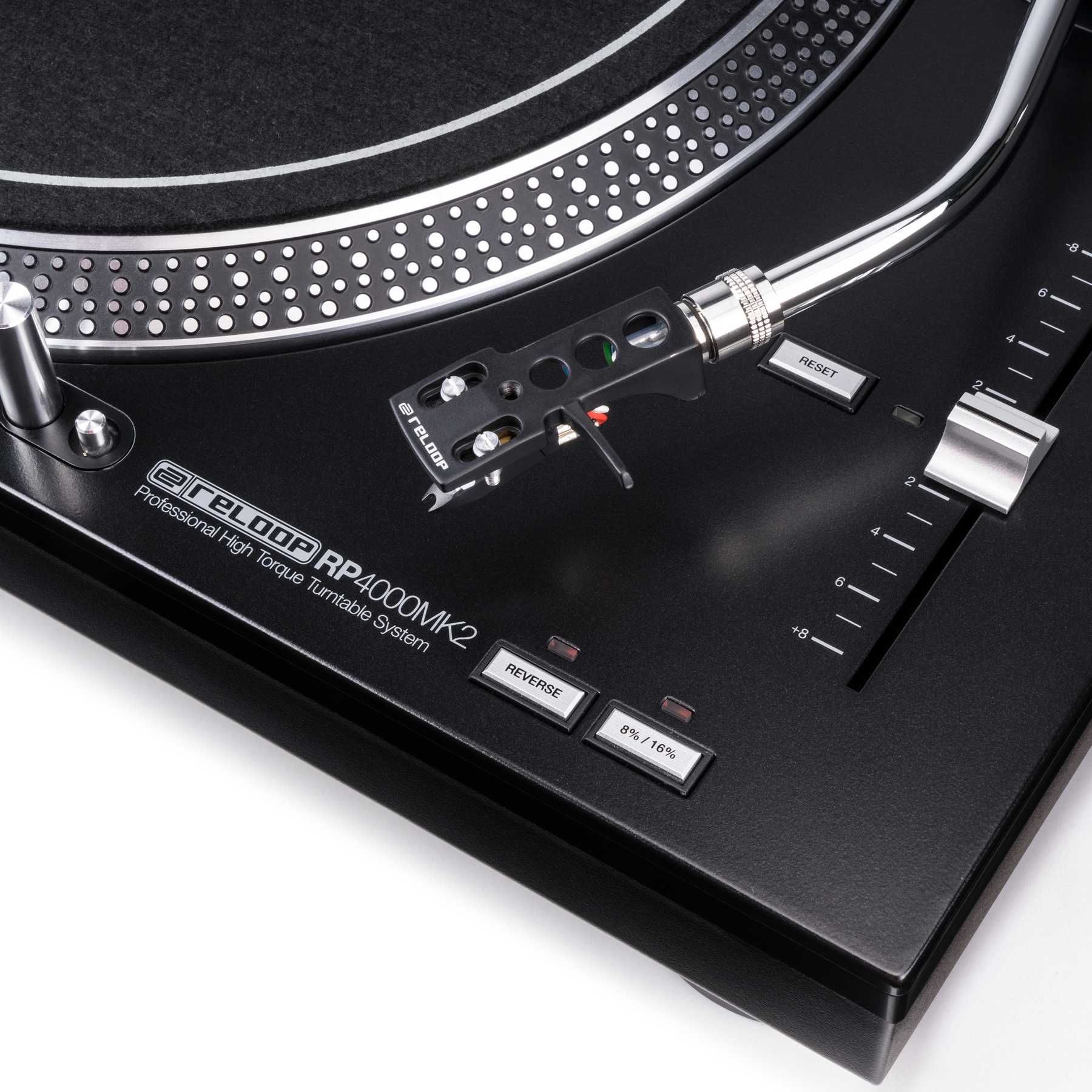

STATICALLY BALANCED S-SHAPED TONE ARM

The RP-4000 MK2 features a statically balanced s-shaped tone arm with hydraulic lift and anti-skating mechanism. Via the universal connection for pick-up systems (SME) a large number of pick-up systems can be connected.

WITH PICK-UP AND HEADSHELL

The RP-4000 MK2 comes with the high-quality OM Black pick-up, handmade by Ortofon in Denmark, pre-fitted to a headshell ready for immediate playback.

NEWLY DEVELOPED TOP PANEL AND STURDY HOUSING DESIGN

The new deep black metallic top panel construction is equipped with metallic buttons for start/stop, platter speed, pitch control, reverse function and tempo reset. The improved touch upon hit offers a clear haptic feedback. The sturdy construction with optimized damping features and shock-absorbing feet improve isolation from unwanted vibrations.

FEATURES

• New in the MK2 version:
• Newly developed top panel and reinforced housing construction
• Reworked metallic buttons with improved feel & tactile response
• Precision pitch with selectable ranges of +/-8 % & +/-16 %
• Tempo reset (quartz lock) feature
• Superior finish in deep black metallic
• Quartz-driven DJ turntable with high-torque direct drive
• Designed for professional use
• Powerful brushless DC motor with more than 1.8 kg/cm torque
• Precise motor control with 3 selectable speeds (33 1/3, 45 & 78 rpm)
• Reverse function: switch for forward/reverse playback
• Precision-engineered die-cast aluminium platter with stable rotation
• Statically balanced S-shaped tone arm with hydraulic lift and anti-skating mechanism
• Universal connection for pick-up systems (SME)
• Extendible needle illumination
• Shock-absorbing feet for vibration isolation
• Sturdy, heavy construction with optimized damping features
• Prepared for dust cover (available as optional accessory)
• Incl. platter, Reloop OM Black cartridge (by Ortofon), headshell, slipmat, counterweight, power cord, instruction manual

TECHNICAL DATA

• Type: direct drive turntable
• Drive: quartz-driven high-torque direct drive
• Motor: 8-pol., 3-phase, brushless DC motor
• Turntable speeds: 3 speeds, manual (33 1/3, 45, 78 rpm)
• Starting torque: > 1.8 kg/cm
• Brake time: < 1 sec.
• Start-up / rpm change: < 1 sec.
• Wow and flutter: < 0.2 % WRMS
• Signal-to-noise ratio: > 50 dB (DIN-B)
• Brake system: electronic brake
• Record weight: recommended 800g

• Material: aluminium die-cast
• Diameter: 332 mm

• Type: universal, statically balanced, s-shaped
• Effective length: 230.5 mm
• Overhang: 16 mm
• Tracking angle error: < 3°
• Applicable pick-up weight: 3.5 – 8.5 g (incl. headshell 13 – 18 g)
• Anti-skating range: 0 – 7 g

• 1x Phono out (gold-plated), 1x GND

• Power supply: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V, 50/60 Hz (JP)
• Power consumption: 12 W
• Dimensions: 450 x144 x 352 mm
• Weight: appr. 9.8 kg
