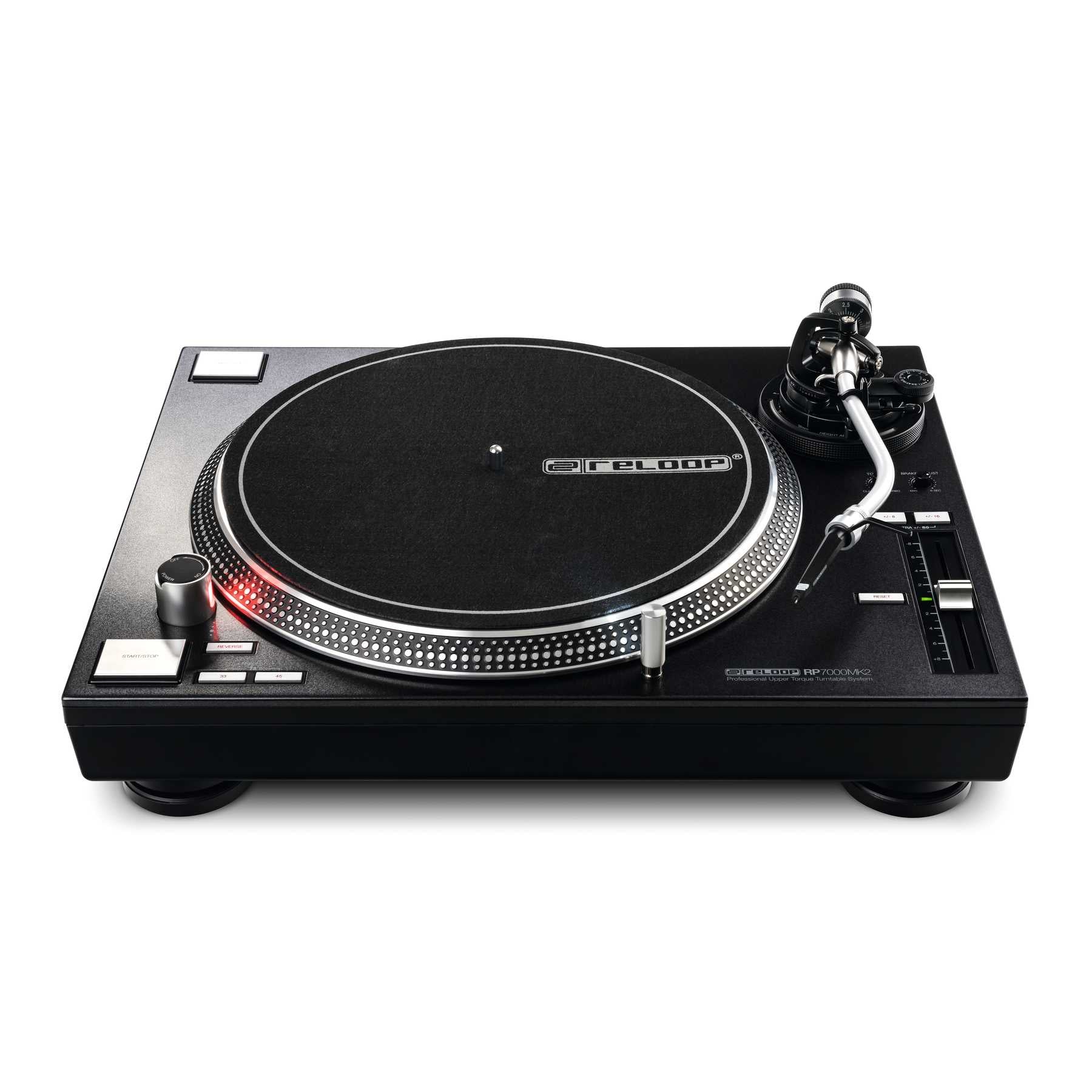

Reloop RP-7000 MK2 Turntable

Reloop RP-7000 MK2 Turntable

FEATURES

• New features of the MK2 version:
• Built for the club: rigid chassis construction with an even heavier design with additional reinforcements made of metal, rubber and moulding compound for high vibration damping and isolation
• More powerful starting torque (adjustable from 2.8 - 4.5 kg/cm)
• Fine-tuned motor control for further optimization of wow and flutter and rotation
• Newly developed, height-adjustable tone arm base (VTA) and anti-skating control
• Particularly lightweight and rigid satin aluminium material used for tone arm
• Adjustable pitch scale for precise adjustments
• Optional ground terminal offers additional protection in complex club & studio environments
• Easily replaceable, freely rotatable LED needle illumination in new unibody aluminium design
• High-quality and hard-wearing deep black, metallic finish
• Quartz driven DJ turntable with upper-torque direct drive
• Adjustable brake speed (0.2 - 6 sec.)
• Precise control of motor with 3 speeds (33 1/3, 45 & 78 rpm)
• Precision-manufactured, die cast aluminium turntable
• Rubber inlays for reduction of vibrations and background noise
• Statically balanced universal S-shaped tone arm with hydraulic lift and anti-skating mechanism
• Universal connection for pick-up systems (SME)
• Pitch range +/-8 %, +/-16 %, +/-50 % (ultra pitch)
• Quartz lock
• Additional start/stop button for vertical positioning
• Reverse function: switch for forward and reverse playback
• Recessed connection cavity for easy flight-case installation & seamless adjustment
• Phono and line out (no grounding required)
• Removable mains and RCA cables
• Safety mains switch
• Shock-absorbing feet against vibrations
• Incl. turntable, slipmat, LED needle light, counterweight, phono RCA cable with grounding, power cord, operating instructions, without cartridge

TECHNICAL DATA

• • Type: direct-drive turntable
  • Drive: quartz driven upper-torque direct drive
  • Motor: 16-pole, 3-phase, brushless motor
  • Turntable speeds: 3 speeds, manual (33 1/3, 45, 78 RPM)
  • Starting torque: 2.8 – 4.5 kg/cm (adjustable)
  • Adjustable stop time (0.2 - 6 sec.)
  • Start-up time / change to RPM: <0.2 sec
  • Wow and flutter: 0.01% WRMS*
  • S/N ratio: > 55dB (DIN-B)
  • Brake system: electronic brake
  • Record weight: recommended 800g

• • Material: die cast aluminium
  • Diameter: 332 mm
  • Weight: approx. 1.5 kg

• • Type: universal, static balanced, S-shaped
  • Effective length: 230 mm
  • Overhang: 15 mm
  • Tracking error range: < 3°
  • Offset Angle: 22°
  • Stylus Pressure: 0 - 4 g
  • VTA setting range: 0-6 mm
  • Useable weight of pick-ups: 3.5~8.5 g (incl. headshell 13~18 g)
  • Anti-skating range: 0 – 3 g
  • Effective tone arm mass: 12.8 g (incl. Reloop Headshell ~10 g)

• • 1x Phono/Line Out (gold-plated), 1x GND earth connection

• Power supply: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V, 50/60 Hz (JP)
• Power consumption: 13 W
• Dimensions: 458 x 144.6 x 354 mm
• Weight: approx. 11.7 kg
